Name: fiber ethernet 10/100/1000Mbps 8 ports 1 SC 20km L2 fiber switch for cctv
Brand: Shenzhen Optfocus Technology Co., Ltd.
SKU: OFS-GSF1T8AB-20
Price: 30.00 USD
Availability: InStock

fiber ethernet 10/100/1000Mbps 8 ports 1 SC 20km L2 fiber switch for cctv

Основная информация

Место происхождения:	Шэньчжэнь, Китай
Фирменное наименование:	OPTFOCUS
Сертификация:	CE
Номер модели:	OFS-GSF1T8AB-20

Количество мин заказа:	2 части
Цена:	20-40 USD/UNIT
Упаковывая детали:	Коробка
Время доставки:	10 дней
Условия оплаты:	L/C, D/A, D/P, T/T, западное соединение, MoneyGram
Поставка способности:	100000 ПК в месяц

Контакт

Польза::	Сеть оптического волокна	Соединитель::	8-port 10/100/1000Mbps + 1 слот волокна порта 1000Mbps
Средства массовой информации волокна::	Мультимодный: 550M- 2KM однорежимное: 20/40/60/80/100/120Km	Курс по срочной сделке пакета::	1488000pps/port
ширина полосы частот::	20Gbps	Препровождать режим::	Магазин-и-передний
Ключевые слова::	Переключатель волокна

Product Description

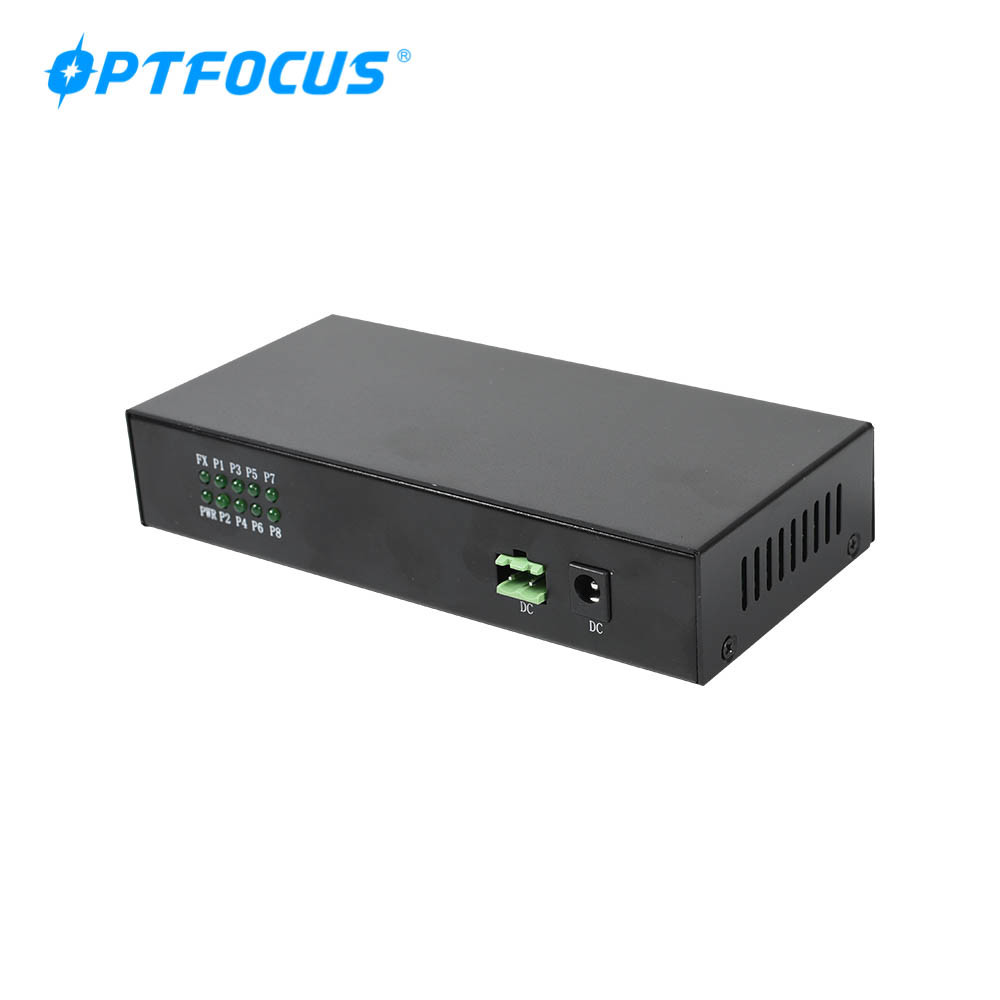

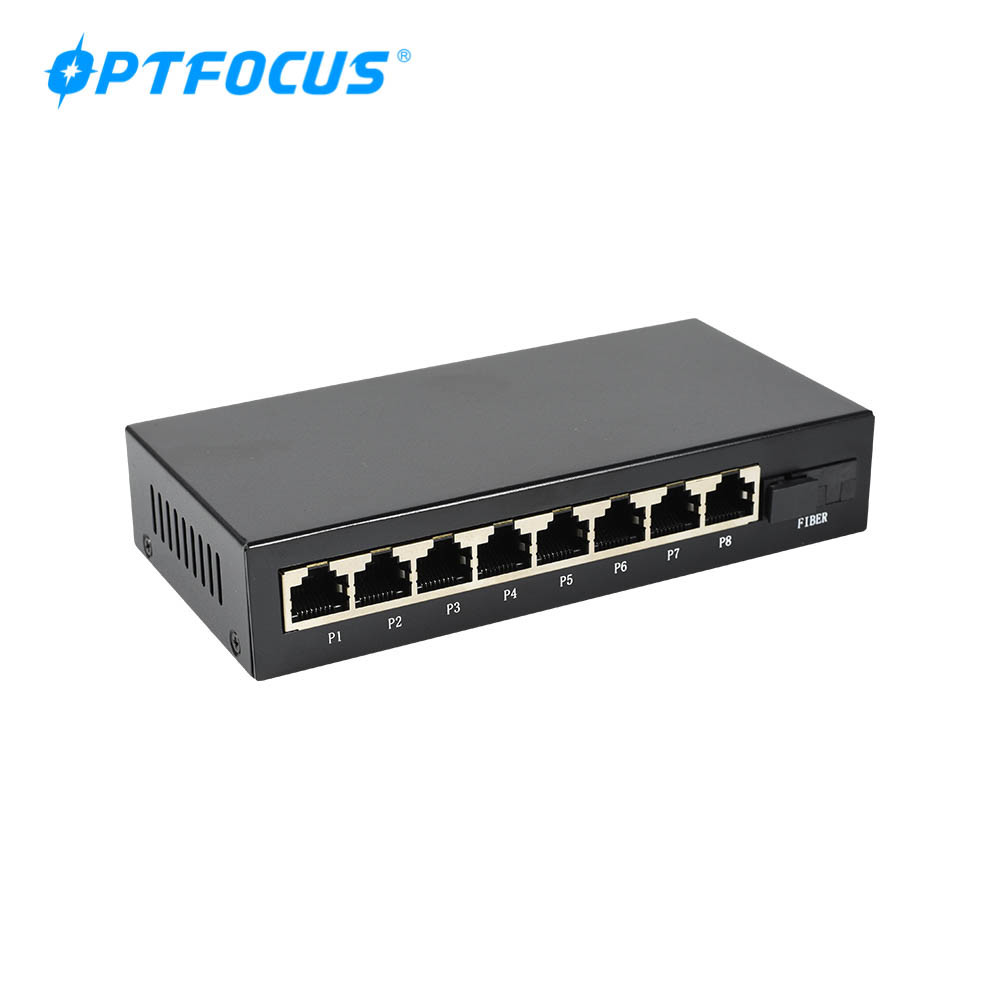

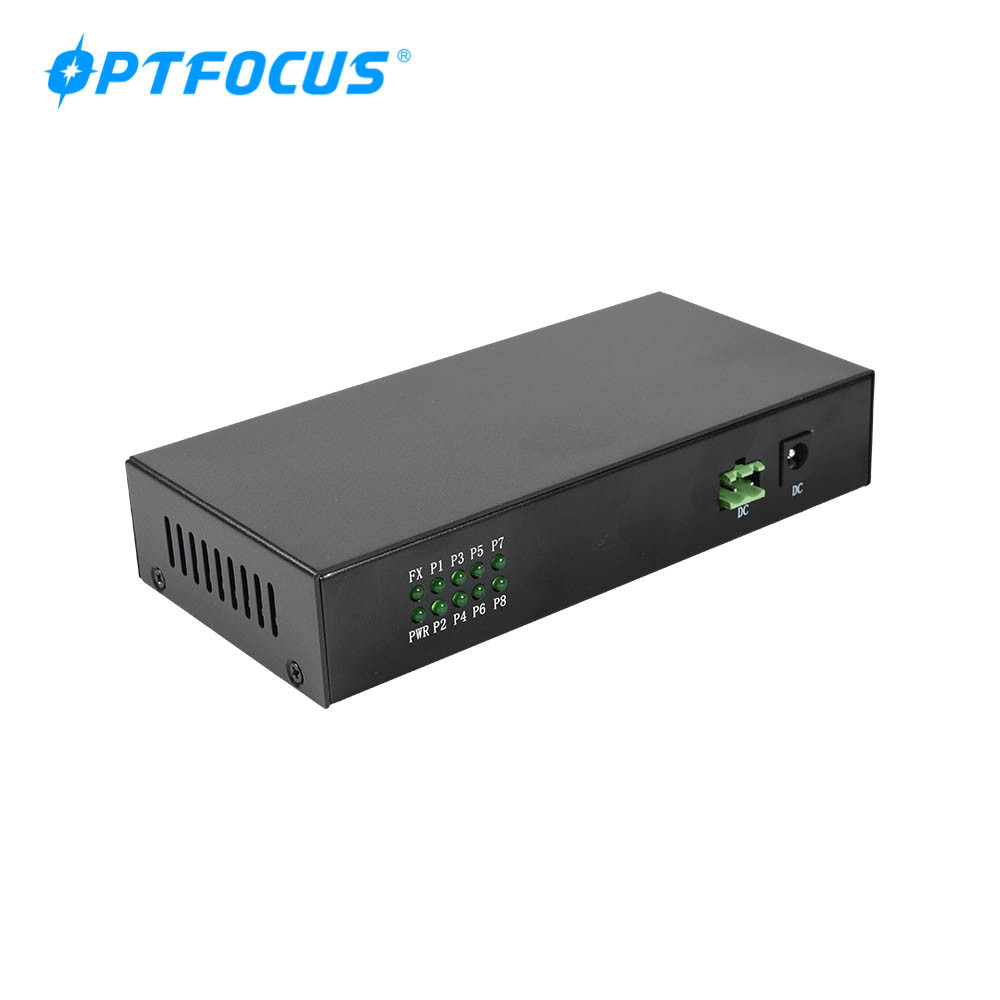

OFS-GSF1T8AB-20―Fiber Switch

OFS-GSF1T8AB-20 series is a Layer 2 + Optical Ethernet switch with 1*1000Mbps Optical fiber ports and 8*10/100/1000Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.

OFS-GSF1T8AB-20 is high availability and reliability, as well as the rich security features, makes it ideal for secure data

transmission.for connecting with devices like computer, switch, hub, server, etc.

Specification

			Product Name

			8-port 10/100/1000Mbps + 1-port 1000Mbps Fiber Slot

			Product Model

			OFS-GSF1T8AB-20

			Network Protocols

			IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x

			Fiber port

			LC,SC,ST,FC Optional

			Network Media

			10BASE-T: Cat3,4,5 UTP(≤100 meter)

			100BASE-TX: Cat5 or later UTP(≤100 meter)
			1000BASE-TX: Cat6 or later UTP(≤100 meter)

			Fiber Media

			Multi-mode:550M- 2KM

			Single-mode: 20/40/60/80/100/120KM

			Performance Specification

			Bandwidth:20Gbps

			Packet Forwarding Rate:1488000pps/port
			MAC Address Table:4K

			Forwarding Mode

			Store-and-Forward

			LED Indicators

			Power: PWR;FX Link/Act;TP 1000(1-8);

			TP Link/Act(1-8)

			Power Supply

			Input: AC100 ～ 250V,

			Output:DC12~15V.

			Max power

			7W

			Environment temperature

			0 ～ +55℃

			Humidity

			5% ～ 90%

Main Features
* 8 port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps Fiber Slot

* Automatic MAC address learning and aging

* 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X

* LED indicators for monitoring power/link/activity

* Supports10/100/1000Mbps-Full/Half-duplex

* Excellent heat elimination without cooling fan.

* Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe

* Support dual power redundancy

* The built-in 12V lead acid battery charging circuit. (optional)

Recommend Products
Company Profile
Contact

тег:

переключатель стекловолокна

Оптический переключатель

optical fibre switch

Shenzhen Optfocus Technology Co., Ltd.

Справьтесь 3, строя Но.7, промышленный парк Тантоу 3-ий, улица Шиян района БаоАн, города Китая Шэньчжэня

86-755-26511956

jenny@optfocus.com

Product Name	8-port 10/100/1000Mbps + 1-port 1000Mbps Fiber Slot
Product Model	OFS-GSF1T8AB-20
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x
Fiber port	LC,SC,ST,FC Optional
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media	Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100/120KM
Performance Specification	Bandwidth:20Gbps Packet Forwarding Rate:1488000pps/port MAC Address Table:4K
Forwarding Mode	Store-and-Forward
LED Indicators	Power: PWR;FX Link/Act;TP 1000(1-8); TP Link/Act(1-8)
Power Supply	Input: AC100 ～ 250V, Output:DC12~15V.
Max power	7W
Environment temperature	0 ～ +55℃
Humidity	5% ～ 90%
